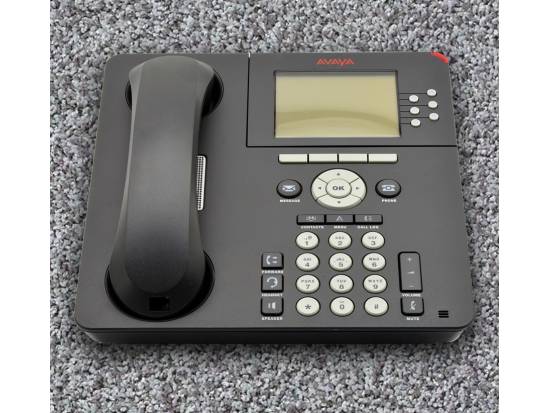

Avaya 9630 IP Phone No Power Supply (POE)

The Avaya 9630 IP Phone is a feature-rich VoIP deskphone designed for busy professionals who require reliable communication tools with advanced functionality. This 9600 Series model delivers wideband audio quality, comprehensive call handling capabilities, and flexible expansion options to meet the demands of modern business environments.

Key Features and Benefits

• Wideband HD Audio: Crystal-clear sound quality in handset, headset, and speakerphone modes for superior voice clarity
• 3.8-Inch Backlit Display: 1/4 VGA grayscale screen provides easy viewing of call information and menu options
• 24 Call Appearance Support: Handle multiple lines efficiently with 6 line appearance buttons and support for up to 24 total call appearances/feature keys
• Full-Duplex Speakerphone: Built-in speakerphone enables natural, hands-free conversations
• Dual Ethernet Ports: 10/100 Mbps LAN port plus PC pass-through port reduces cable clutter on your desk
• Power over Ethernet: 802.3af PoE (Class 2) support eliminates the need for a separate power supply (not included)
• Extensive Protocol Support: Compatible with H.323 and SIP protocols for flexible deployment options
• USB Connectivity: USB 1.1 port allows you to import personal contacts from a USB thumb drive
• Expansion Ready: Supports up to 3 Avaya SBM24 Button Modules for users who need additional line appearances
• Adapter Interfaces: Two adapter ports support optional add-ons like the 9600 Bluetooth Adapter or 9600 GigE Adapter
• Contact Management: Store up to 250 contacts with dedicated hard button access
• Call Log with LED Indicator: 100-entry call log with LED notification for missed calls
• Dual Message Waiting Indicators: Visual notification ensures you never miss important voicemail
• Multi-Language Support: Available in 14 languages including English, Spanish, French, German, Italian, Dutch, Portuguese, Japanese, Chinese, Korean, and Russian

The Avaya 9630 IP Phone is well-suited for managers, supervisors, and administrative professionals who handle multiple calls throughout the day. Its wideband audio codecs (G.722) deliver noticeably better voice quality compared to traditional narrowband phones, reducing listener fatigue during extended conversations. The intuitive 4-way navigation cluster with OK button, combined with 4 softkeys and numerous fixed feature buttons (including Speaker, Mute, Headset, Phone, Contacts, Call Log, Message, and Forward/Mobility), provides quick access to frequently used functions. The embedded WML browser extends the phone's capabilities for custom applications, while the wideband headset interface ensures compatibility with quality headsets for all-day comfort. For organizations using Avaya Communication Manager (R3.0 or later for H.323, R4.0 or later for SIP), Avaya Aura Session Manager 6.0, or Avaya IP Office (R6.0 or later for H.323, R6.1 or higher for SIP on IP500/IP500 V2), this phone integrates seamlessly into existing infrastructure.

Technical Specifications

• Part Number: 700426729
• Product Series: 9600 Series
• Display: 3.8 inches diagonal, 1/4 VGA grayscale, backlit (3.1" x 1.6" active area)
• Line Buttons: 6 with red LEDs
• Audio Codecs: G.722 (wideband); G.711, G.726, G.729A/B (narrowband)
• Ethernet: Dual 10/100 Mbps (LAN + PC pass-through; no Gigabit support on this model)
• VoIP Protocols: H.323, SIP
• Power: 802.3af PoE Class 2 (power supply not included; optional Avaya 1151D1 sold separately)
• Ports: USB 1.1, wideband headset interface, 2 adapter interfaces
• Expansion: Supports up to 3 Avaya SBM24 Button Modules (sold separately)
• Wall Mountable: Yes (requires optional 9621/9630/9640/9641/9650 Wall Mount Kit, sold separately)
• Color: Gray
• Bluetooth: Optional via 9600 Bluetooth Adapter (sold separately)

Included

• Avaya 9630 IP Phone
• Handset
• Handset cord

This Avaya 9630 IP Phone comes ready to deploy with all essential accessories. Please note that as indicated in the product title, this unit does not include a power supply and requires Power over Ethernet (PoE) from a compatible network switch or PoE injector. For installations without PoE infrastructure, the Avaya 1151D1 power supply is available separately.
